A Flutter popover in the style of iOS: a box with an arrow pointing at the
widget that opened it. showPopover pushes a route on the root navigator,
measures the widget behind the context you pass, and places the body above,
below or beside it. It runs on iOS, Android, macOS, Windows, Linux and the
web, and depends only on package:flutter/widgets.dart.
flutter pub add popoverDart 3.9 and Flutter 3.35 or newer.
Call showPopover with the context of the widget the arrow should point at:
import 'package:flutter/material.dart';
import 'package:popover/popover.dart';
class MenuButton extends StatelessWidget {
const MenuButton({super.key});
@override
Widget build(BuildContext context) {
return TextButton(
onPressed: () async {
final choice = await showPopover<String>(
context: context,
width: 160,
height: 112,
bodyBuilder: (context) => Material(
type: MaterialType.transparency,
child: Column(
children: [
for (final item in ['Copy', 'Share'])
ListTile(
title: Text(item),
onTap: () => Navigator.pop(context, item),
),
],
),
),
);
debugPrint('Picked $choice');
},
child: const Text('Menu'),
);
}
}showPopover returns the value passed to Navigator.pop, or null when the

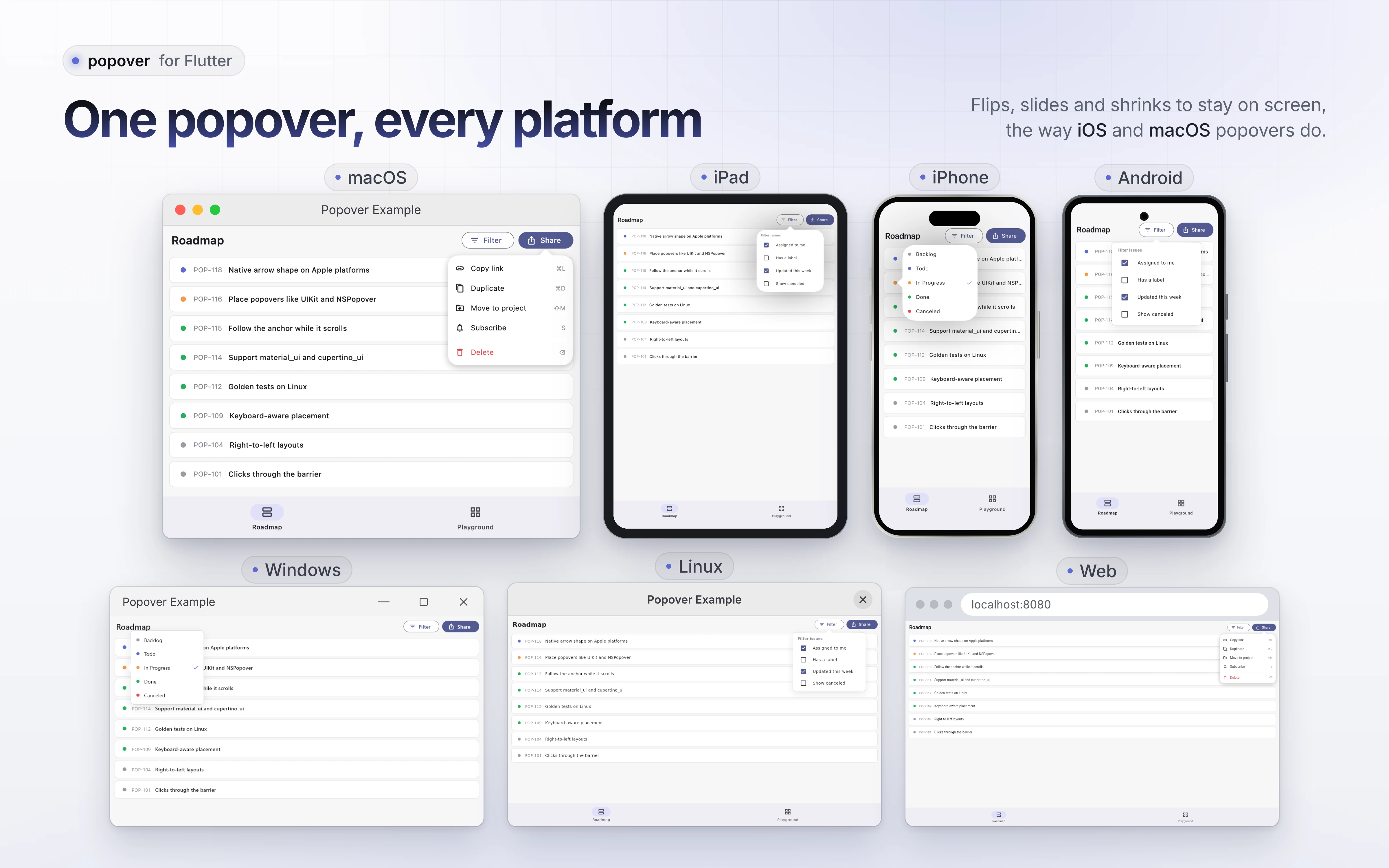

user taps outside. example/lib/main.dart places nine buttons across the
screen. Run it with cd example && flutter run.
Flutter 3.47 moved Material and Cupertino into the
material_ui and
cupertino_ui packages, whose classes
differ from the ones in package:flutter/material.dart and
package:flutter/cupertino.dart. Since 0.5.0 popover depends on none of them
and works in a MaterialApp or a CupertinoApp from either source.
The body is not wrapped in a Material. InkWell, ListTile, TextField,
Checkbox and the other widgets that need one throw
No Material widget found unless you wrap the body in the Material of your
UI library, as the quick start does.
showPopover captures Theme, DefaultTextStyle, IconTheme and the other
inherited themes at context and applies them to the body, as showDialog
does. The body gets the text and icon style in effect where it was opened: the
AppBar foreground color when opened from an AppBar action, and
MaterialApp's red debug style when context has no Material ancestor. A
Material wrapper resets the text to the theme's bodyMedium. An IconTheme
around the body resets the icons.
Cupertino widgets such as CupertinoListTile need no wrapper.
barrierLabel is the screen reader label of the barrier and defaults to
'Dismiss'. For a localized one, pass
MaterialLocalizations.of(context).modalBarrierDismissLabel or
CupertinoLocalizations.of(context).modalBarrierDismissLabel.
arrowStyle picks the shape. PopoverArrowStyle.apple draws the native
outline. On iOS that is the iOS 26 popover: Apple's continuous corners with a
34 point radius and a 26 by 13 arrow whose tip is rounded and whose sides flow
into the body. On macOS it is the macOS 26 NSPopover: 20 point corners and an
arrow with an arc for a tip. Next to a corner the arrow merges into it, as on
the native platforms. The outlines repeat the mask paths UIKit and AppKit draw,
checked against paths dumped from an iOS simulator and from macOS, and the
default shadows are measured from both.
PopoverArrowStyle.triangle is the sharp triangle with 8 point corners from
earlier versions. PopoverArrowStyle.adaptive, the default, picks apple on
iOS, iPadOS and macOS and triangle everywhere else, on the web by the
host OS. arrowWidth,
arrowHeight, radius and shadow override the defaults of either style, for
example radius: 13 for the corners of iOS before version 26.
The popover is placed the way UIPopoverPresentationController and
NSPopover place theirs. The rules were measured on iOS 26 simulators and
macOS 26.
direction is the preferred side: PopoverDirection.bottom by default, or
top, left or right. Left and right stay physical in right-to-left apps.
When the popover does not fit there, it opens on the opposite side. On macOS
it then tries the two perpendicular sides, like NSPopover. When it fits
nowhere, it takes the preferred or the opposite side, whichever has more room,
and the body shrinks to fit, so a scrollable body scrolls.
The popover stays inside the safe area and above the keyboard, with Apple's margins: 10 on iPhone, 19 at the sides, 30 at the top and 10 at the bottom on iPad, 13 on macOS. Android, Windows, Linux and the web use the iPhone margin. Flutter web picks the rules of the host OS, so it gets the macOS rules on a Mac.
Along the side it opens on, the body centers on the anchor and slides to stay on screen. Outside macOS, a popover on the left or the right may cover the anchor up to its center, as UIKit does. An anchor that is partly or fully off screen is moved onto the screen edge first. The popover follows the anchor when it moves, scrolls or the screen rotates.
width, height and constraints size the body and are capped by the room
available. arrowWidth and arrowHeight size the arrow. arrowDxOffset and
arrowDyOffset move the point the arrow aims at. contentDxOffset and
contentDyOffset widen and heighten the anchor, which moves a popover that
opens to the right or below.
A tap on the barrier closes the popover. barrierDismissible: false keeps it
open, and barrierColor tints the barrier. With
allowClicksOnBackground: true, taps pass through the barrier to the widgets
behind it and barrierDismissible is ignored. onPop runs whenever the
route pops.
requestFocus: false stops the popover from taking focus, so an open
keyboard stays up.
The popover fades in over transitionDuration, 200 ms by default.
PopoverTransition.scale, the default, also grows the body from the arrow.
PopoverTransition.other turns the scaling off. popoverTransitionBuilder
replaces the fade:
showPopover(
context: context,
bodyBuilder: (context) => const Text('Hello'),
popoverTransitionBuilder: (animation, child) =>
SlideTransition(
position: Tween(begin: const Offset(0, -0.1), end: Offset.zero)
.animate(animation),
child: child,
),
);The project accepts pull requests, not issues. Open a PR with a fix or a reproduction in the example app. CONTRIBUTING.md covers tests, the mutation test gate and versioning.
MIT. See the LICENSE file.
