DO NOT MERGE — draft for review only.

Merge order — 1 of 2 (merge this first).
The other one, https://github.com/datocms/cms/pull/394, must come AFTER this one.

Fixes two GitHub issues and one community thread about DatoCMS plugins. SDK side.

1. Dark-mode input surface (issue #54)

react-ui TextInput, TextareaInput and SelectInput now paint on
--color--surface-raised, the token native inputs use. Previously they sat on the
page-background token, so in dark mode they were one shade darker than the
controls around them.

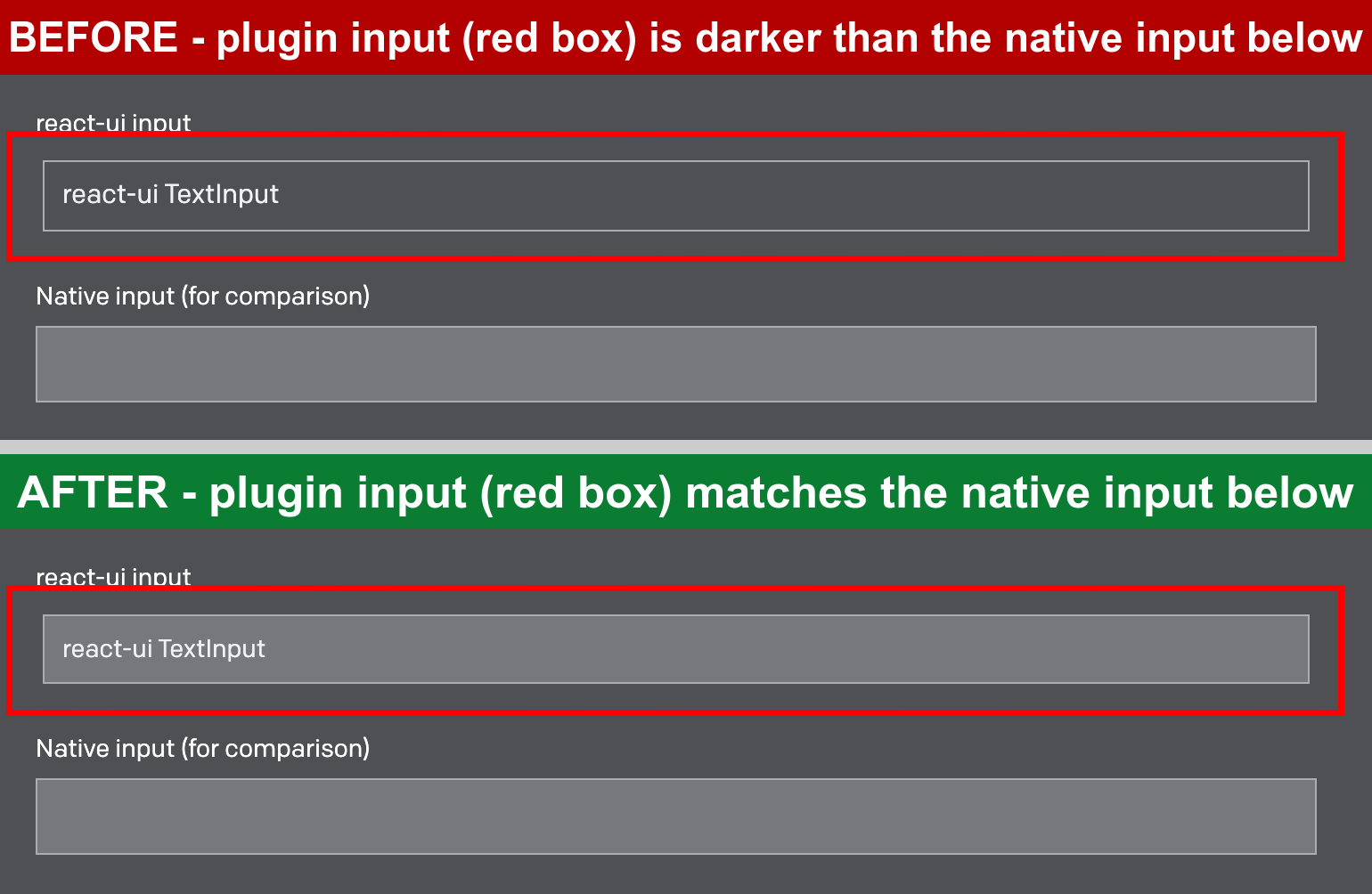

Dark-mode input colour, before and after

The same token miss affected the search box inside Dropdown menus
(.Dropdown__menu__search__input), which sat one shade darker than its own
raised menu panel. Now fixed too:

Dropdown search box, before and after

2. ctx.rootFontSize (community thread 8663)

New base property carrying the host's <html> font size in px. The runtime
mirrors it onto the plugin's <html>, so rem-based tokens measure the same
inside the frame as in the host. (Host sends it from the cms PR.) The runtime
also guards against a non-positive value collapsing the plugin to 0px.

Font size, before and after

3. Message-origin fast path (issue #55)

A capture-phase message listener reads event.origin before Penpal reads
event.data. Chrome slows the deserialization of cross-origin messages ≥16 KB
when data is read first (MaskDeserializationTimings); reading origin first
avoids it. Penpal is unchanged. Live micro-benchmark in Chrome, same 266 KB
message to two cross-origin iframes:

Synthetic test:

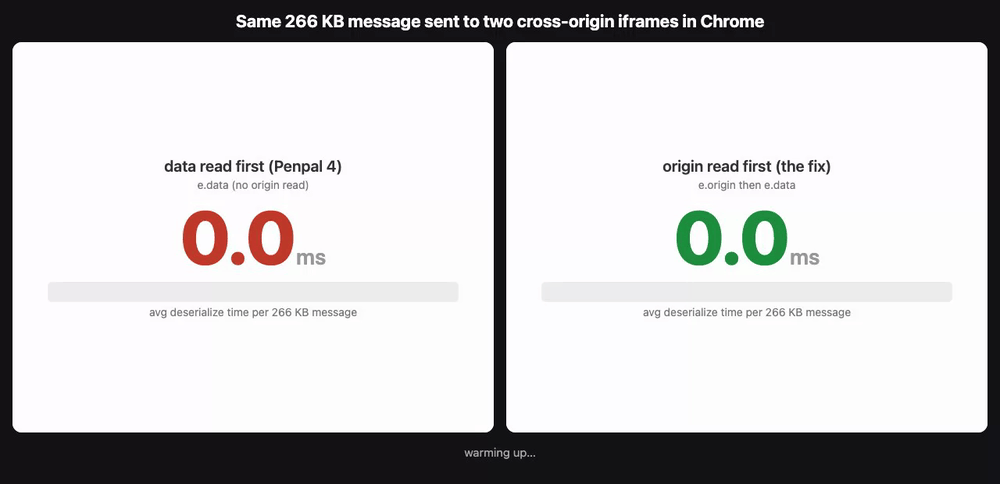

Deserialize cost, data-first vs origin-first

More realistic plugin test, before/after

(mean, P95, and max/worst should all improve)

typing-lag-before.mp4
typing-lag-after.mp4

Notes

Tested live against a local dev project. Images are hosted as DatoCMS assets
(no binaries committed to this repo).

🤖 Generated with Claude Code

https://claude.ai/code/session_01RtS2SCFb7RgPeThjnPVngz

@pkg-pr-new

pkg-pr-new Bot commented Sep 14, 2026

Copy link
Copy Markdown

Open in StackBlitz

npm i https://pkg.pr.new/datocms-react-ui@20f0db0
npm i https://pkg.pr.new/datocms-plugin-sdk@20f0db0

commit: 20f0db0

@roger-datocms
roger-datocms force-pushed the fix/plugin-sdk-issues-54-55-fontsize branch from 79f6adb to 75810a1 Compare September 14, 2026 23:14
…gin fast path

- react-ui TextInput/TextareaInput/SelectInput paint on the raised surface
  token, matching native inputs (dark-mode issue #54).
- New ctx.rootFontSize; the runtime mirrors the host root font size onto the
  plugin so rem-based tokens match the host (community thread 8663).
- Read event.origin before Penpal reads event.data so Chrome skips its slow
  cross-origin deserialization path (issue #55).
- Changesets included.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01RtS2SCFb7RgPeThjnPVngz
@roger-datocms
roger-datocms force-pushed the fix/plugin-sdk-issues-54-55-fontsize branch from 75810a1 to b3e97d8 Compare September 14, 2026 23:45
applyHostAppearance runs on every ctx update (every keystroke in a sibling
field). Writing documentElement.style.fontSize unconditionally reflowed the
whole rem-based plugin frame each time; only write when the value actually
changed, matching applyColorScheme.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01RtS2SCFb7RgPeThjnPVngz
@roger-datocms roger-datocms changed the title [Do not merge] Plugin SDK fixes: dark-mode input surface, ctx.rootFontSize, message-origin fast path [Part 1 of 2] Plugin SDK fixes: dark-mode input surface, ctx.rootFontSize, message-origin fast path Sep 15, 2026
@roger-datocms roger-datocms self-assigned this Sep 15, 2026
@roger-datocms roger-datocms added the enhancement New feature or request label Sep 15, 2026
@roger-datocms
roger-datocms marked this pull request as ready for review September 15, 2026 23:45
`!(next > 0)` let Infinity through; use Number.isFinite so the guard matches
its stated intent (reject non-positive and non-finite values).

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01RtS2SCFb7RgPeThjnPVngz
