NVIDIA PhysicsNeMo

Build, train, and scale physics AI models with PyTorch.

Documentation · Examples · Models · Blog · Discussions · Contributing

NVIDIA PhysicsNeMo is an open-source PyTorch framework for physics machine learning (physics ML), scientific machine learning (SciML), and AI for science and engineering. It provides reusable library components and end-to-end training recipes.

pip install "nvidia-physicsnemo[cu13]"

For CUDA 12, a basic install, optional features, or source setup, refer to installation options.

PhysicsNeMo in Action

Aerodynamics	Weather Forecasting

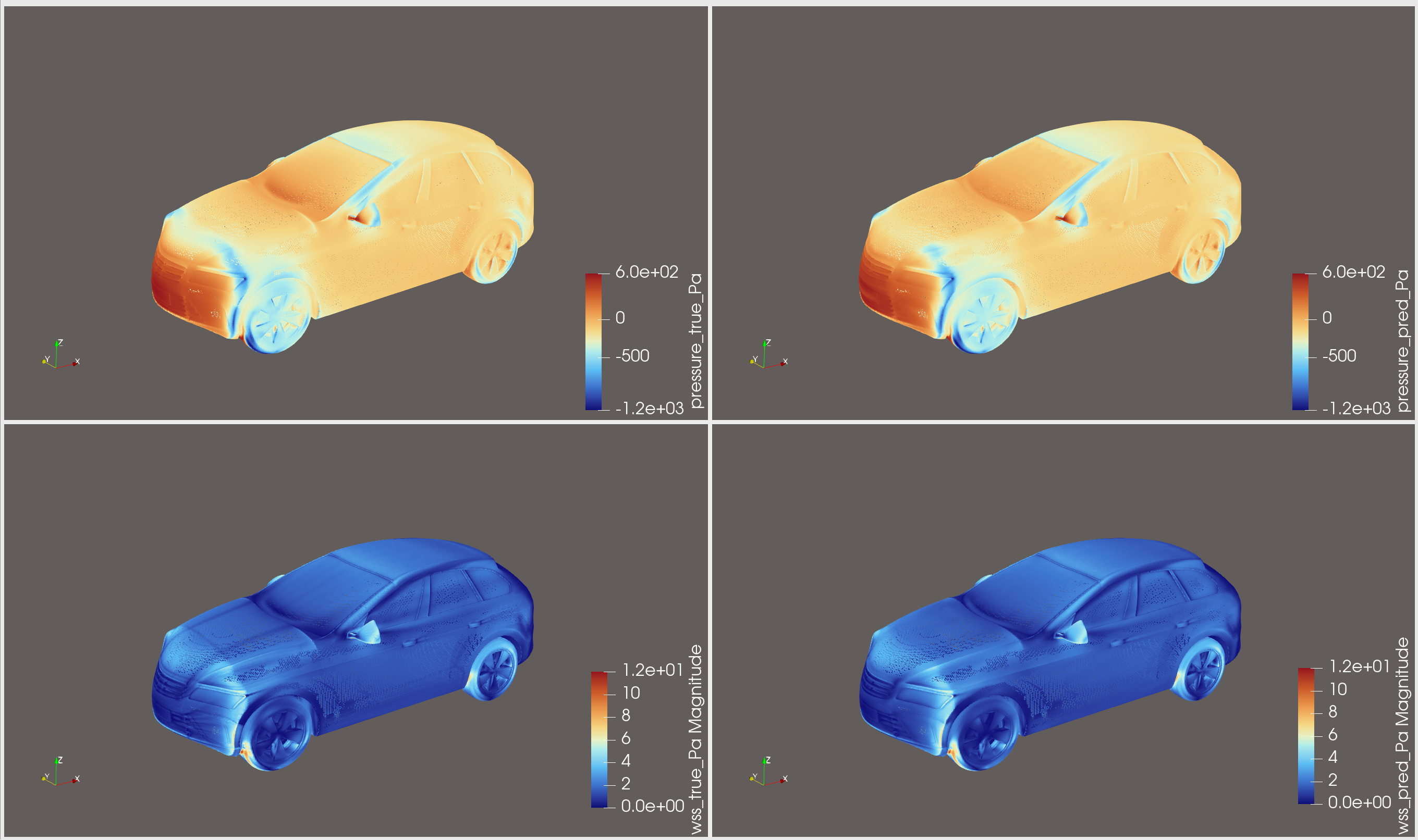

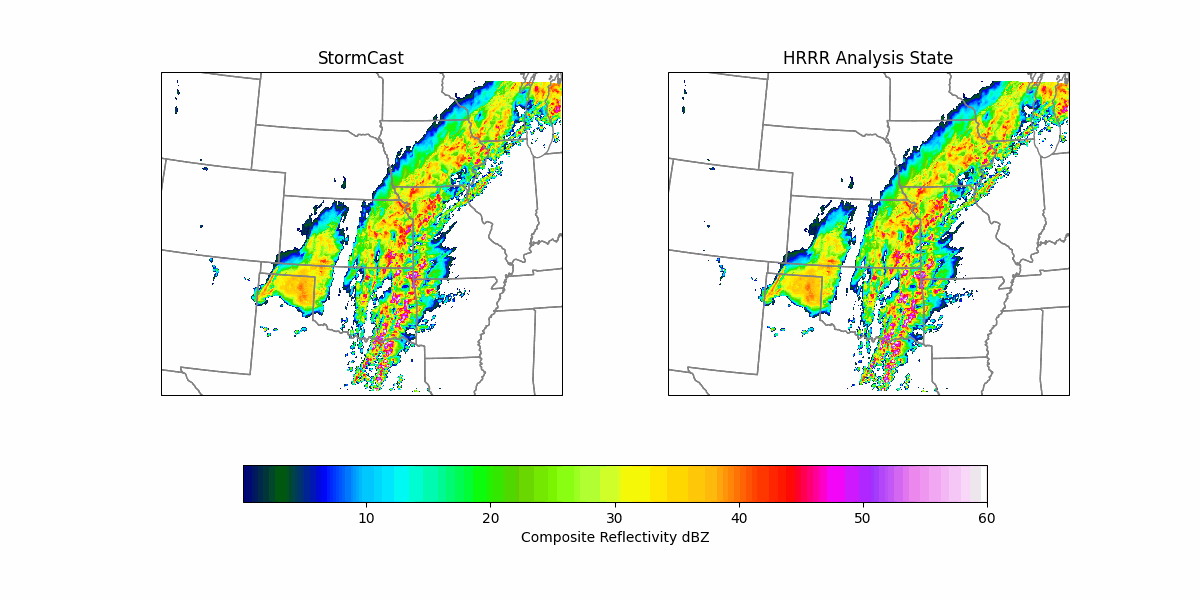

Unified external aerodynamics: train and compare current surface and volume models	StormCast: generative regional weather forecasting
Semiconductor packaging	Structural mechanics

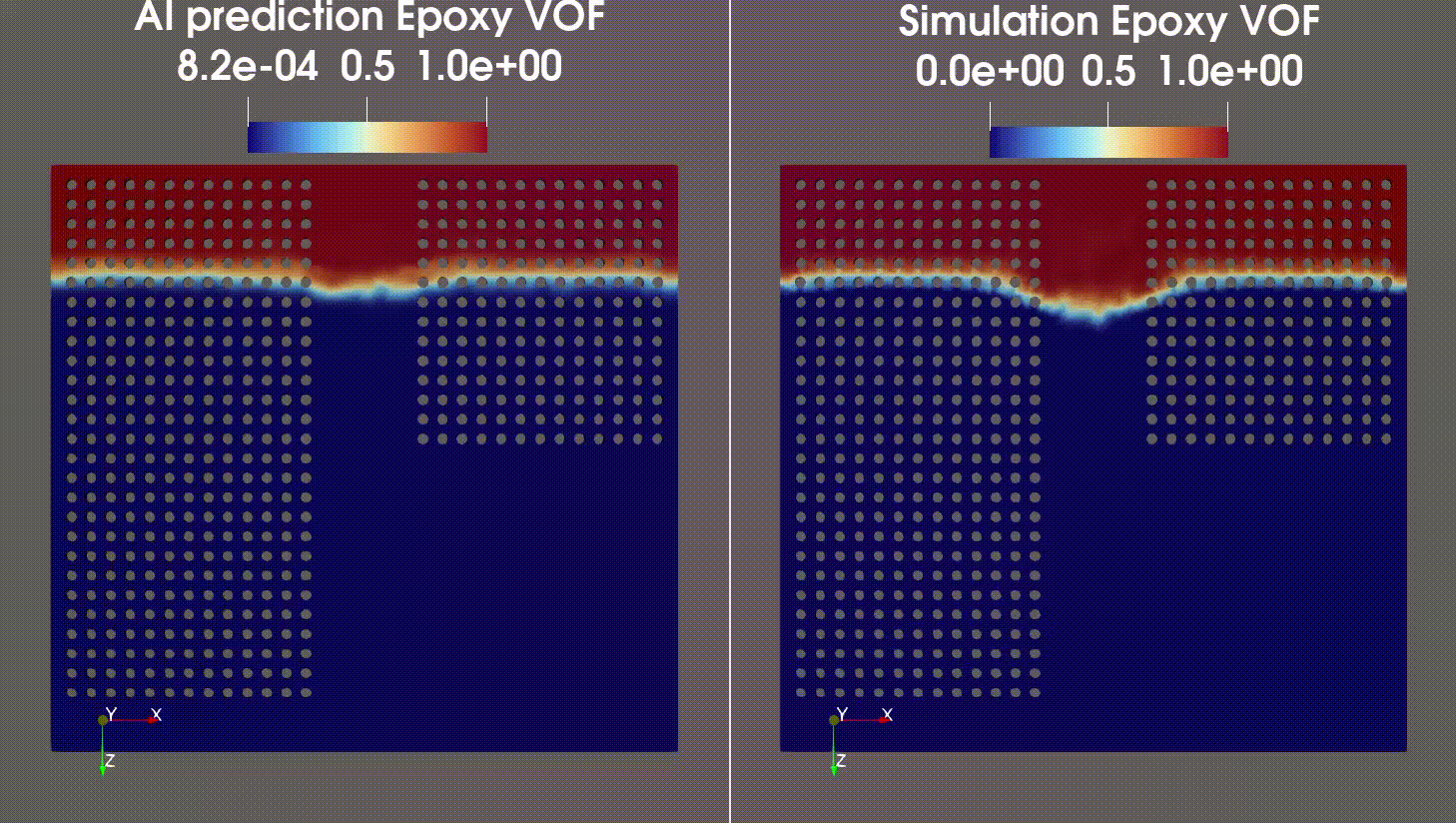

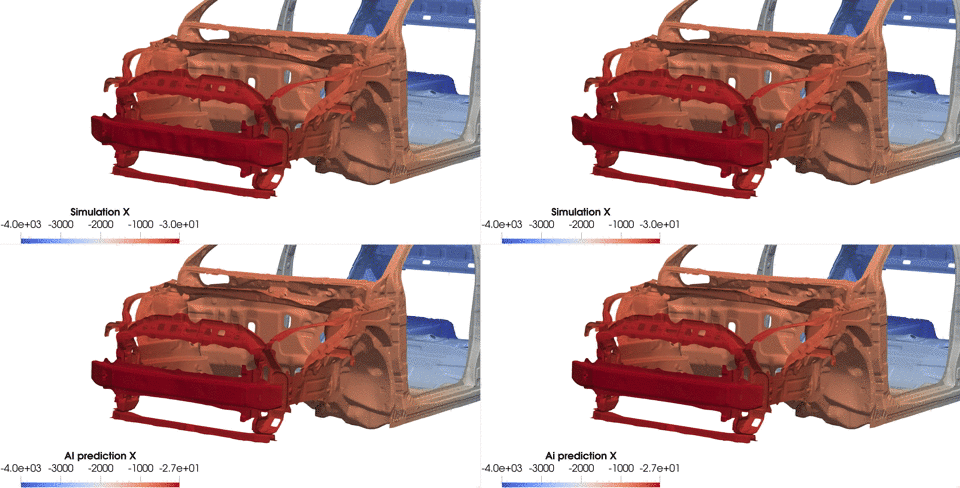

Underfill dispensing: transient epoxy-interface prediction with GeoTransolver	Crash dynamics: transient surrogates on deforming meshes
Geophysics	Healthcare

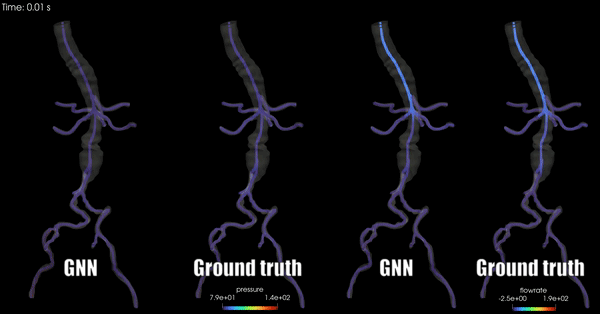

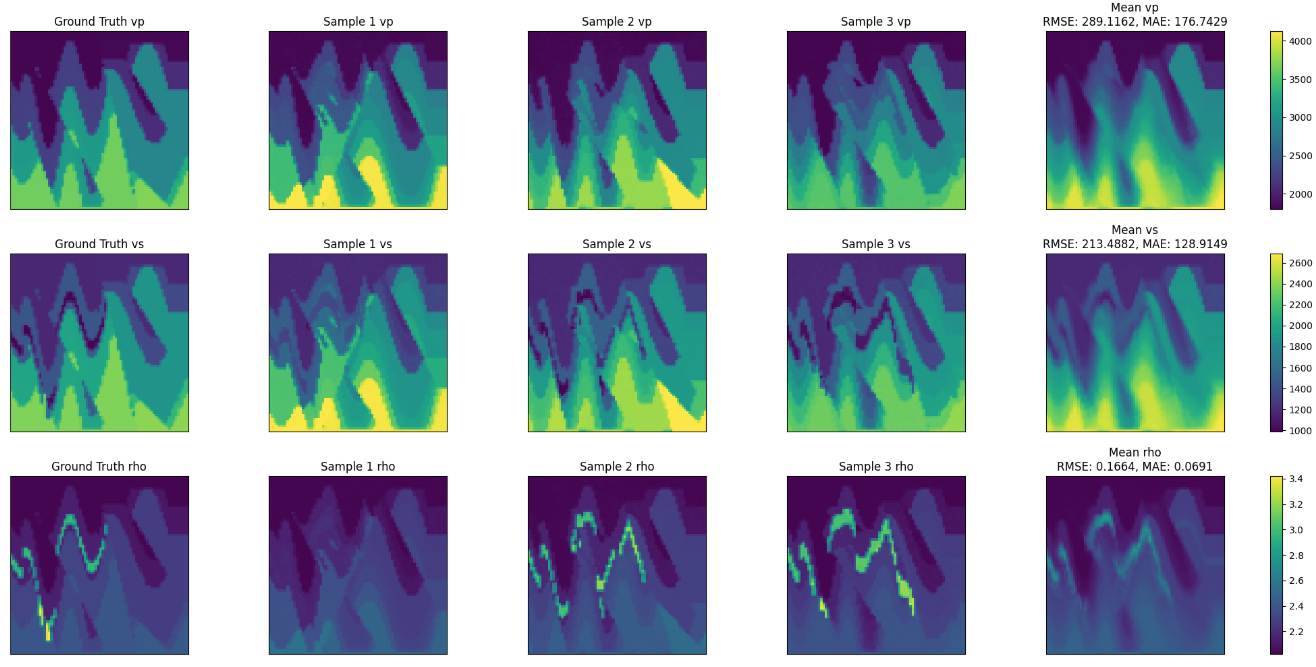

Diffusion FWI: guided generative full-waveform inversion	Cardiovascular flow: reduced-order prediction with MeshGraphNet
Data-center thermal design	Additive manufacturing

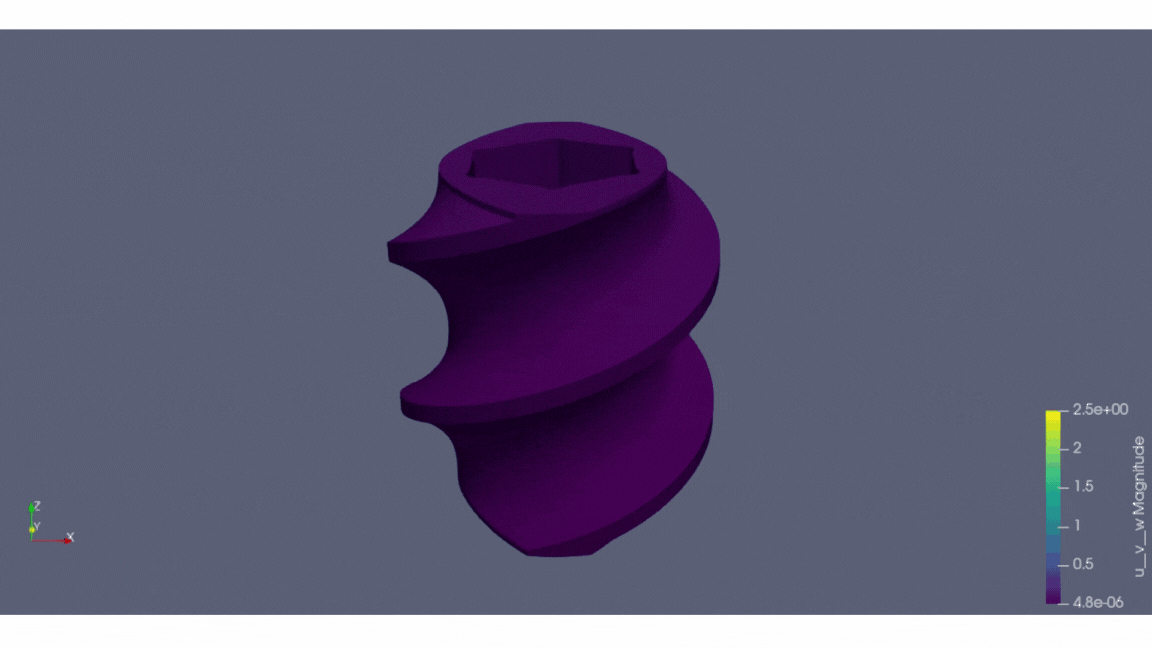

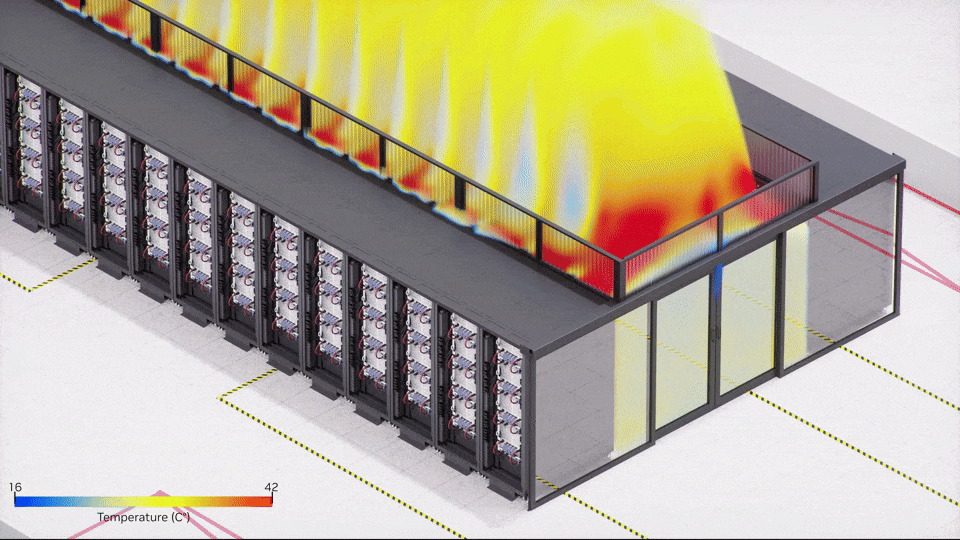

Data-center airflow: real-time temperature and airflow prediction with a 3D U-Net surrogate	Metal sintering: graph-based deformation prediction

Every visual above comes from a PhysicsNeMo recipe or workflow.

Why PhysicsNeMo

• PyTorch-native and composable. Use a complete architecture, a layer, a numerical operator, or a data transform without replacing your existing PyTorch workflow.
• Built for scientific representations. Work with regular grids, meshes, point clouds, graphs, and nested physical fields while preserving their structure.
• Scale the sample itself. Use ShardTensor domain parallelism to split a single high-resolution sample across GPUs, alongside PyTorch DistributedDataParallel (DDP) or Fully Sharded Data Parallel 2 (FSDP2).

Explore Recipes

Start from a recipe and adapt it to your data, geometry, physics, and deployment constraints. Explore by physical domain:

• ✈️ Engineering design and CFD: train and compare current surface and volume models with the unified external-aerodynamics recipe or accelerate data-center airflow.
• 🌦️ Weather, climate, and water: build global forecasts from the weather recipes or predict floods.
• 🏗️ Structures and manufacturing: emulate deforming structures.
• 🌍 Geophysics and subsurface systems: build reservoir surrogates.
• 🫀 Healthcare: perform brain anomaly detection.
• ✨ Generative and inverse physics: compose the diffusion toolkit with topology-generation recipes.
• 🔁 Simulation-data loops: select new simulations with active learning.

Browse the complete example catalog for every available recipe.

Explore the PhysicsNeMo Ecosystem

PhysicsNeMo supplies reusable models, training components, and recipes. For a domain-focused application layer or data preparation, continue with:

Need	Continue with
Scientific data preparation	PhysicsNeMo Curator for extract, transform, and load (ETL) pipelines that prepare AI-ready scientific and engineering datasets
Engineering inference and design	PhysicsNeMo CFD for inference, evaluation, benchmarking, and design workflows
Weather and climate	Earth2Studio for building and deploying AI weather and climate workflows
Atomistic simulation	NVIDIA ALCHEMI Toolkit for GPU-first training, inference, and dynamics workflows, with optimized primitives from ALCHEMI Toolkit Ops

Choose a Model Family

PhysicsNeMo models are ordinary torch.nn.Module objects. Choose a family by the representation of your data and the task you need to solve. Model names link to source code. The final column links to examples and papers.

Surrogates and Dynamics

Model family	Data representation	Known uses and starting points
FNO / DPOT	Regular Cartesian grids; DPOT adds a time/history axis	Neural PDE operators and autoregressive dynamics: Darcy flow with FNO, DPOT paper
MeshGraphNet / VFGN	Node-edge graphs over unstructured meshes	Mesh dynamics and reduced-order simulation: vehicle crash, cardiovascular flow, metal sintering
Transolver / FLARE	Point sets and structured or unstructured discretizations	PDE surrogates on large discretizations: Darcy flow, external aerodynamics
GeoTransolver	Point clouds or structured/unstructured grids, with geometry and global context	Geometry-aware CAE: external aerodynamics, underfill dispensing
DoMINO	Geometry points, sampled surface/volume fields, and structured SDF grids	Surface and volume field prediction for automotive aerodynamics: paper
FIGConvNet	Large 3D point clouds represented with factorized 2D grids	3D CAE field and scalar prediction: external aerodynamics, vehicle crash
GLOBE (experimental; API may change)	Boundary meshes and arbitrary query points	Boundary-driven PDEs and large-geometry CAE: external aerodynamics, paper
AeroJEPA (experimental; API may change)	3D surface point clouds, operating conditions, and query points	Aerodynamic representation learning and field prediction: tutorial, paper

Weather and Climate

Model family	Data representation	Known uses and starting points
AFNO	Regular 2D fields	Global forecasting: unified weather recipe
GraphCast	Latitude-longitude fields and a multiscale icosahedral mesh graph	Global autoregressive forecasting: recipe, paper
Pangu-Weather / FengWu	Multilevel latitude-longitude grids	Global medium-range forecasting: Pangu-Weather recipe, FengWu paper
DLWP / DLWP-HEALPix	Cubed-sphere grids or HEALPix meshes	Global and coupled forecasting: DLWP, DLWP-HEALPix

Generative and Inverse Models

Model family	Data representation	Known uses and starting points
Diffusion U-Nets / DiT	2D fields or patch tokens	Stochastic regional forecasting, downscaling, and inverse problems: StormCast and StormScope, diffusion FWI
TopoDiff	2D topology fields conditioned on design constraints	Generative topology optimization: recipe, paper

Refer to the model catalog for the full API and configuration details.

Contents of PhysicsNeMo

The framework is layered so high-level workflows can reuse lower-level scientific building blocks without forcing those foundations to depend on applications.

flowchart TB
  apps["Applications and workflows<br/><a href='https://github.com/NVIDIA/physicsnemo/tree/main/examples'>Examples</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/active_learning'>Active learning</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/diffusion'>Diffusion</a>"]
  blocks["Physics AI building blocks<br/><a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/models'>Models</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/datapipes'>Datapipes</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/metrics'>Metrics</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/domain_parallel'>Domain parallel</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/optim'>Optim</a>"]
  base["Reusable foundations<br/><a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/mesh'>Mesh</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/nn'>NN</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/utils'>Utils</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/distributed'>Distributed</a> · <a href='https://github.com/NVIDIA/physicsnemo/tree/main/physicsnemo/core'>Core</a>"]
  apps -->|"build on"| blocks
  blocks -->|"reuse"| base
  classDef workflow fill:#F5FAEF,stroke:#76B900,stroke-width:2px,color:#111111
  classDef building fill:#EEF7E1,stroke:#76B900,stroke-width:2px,color:#111111
  classDef foundation fill:#E8F5D0,stroke:#76B900,stroke-width:2px,color:#111111
  class apps workflow
  class blocks building
  class base foundation

Loading

Arrows follow the allowed dependency direction in the import-layer contract. The diagram is simplified. Follow the links below for the public surfaces.

• Applications and workflows: runnable examples, restartable active-learning loops, and diffusion schedulers, samplers, guidance, and multi-diffusion.
• Physics AI building blocks: optimized models, datapipes for readers, transforms, GPU preprocessing, and multi-dataset sampling, metrics, ShardTensor domain parallelism, and optimization.
• Reusable foundations: Mesh and DomainMesh with GPU topology, spatial queries, remeshing, and differentiable deformation; neural-network layers and numerical functionals for derivatives, interpolation, geometry, sampling, and rendering; utilities for checkpointing, logging, and profiling; distributed primitives including distributed FFTs; and the model lifecycle core.

Cross-cutting deployment helpers cover ONNX export and runtime. Experimental modules incubate models such as GLOBE and AeroJEPA, alongside uncertainty quantification, guardrails, parameter-efficient fine-tuning with LoRA, and other research utilities.

API stability: APIs under physicsnemo.experimental are incubating and may change between releases. Stable modules follow the project's semantic-versioning policy. Refer to the changelog for API changes and removals.

Use PhysicsNeMo with Coding Agents

The repository includes two NVIDIA-authored skills for Codex, Claude Code, and other compatible coding agents:

• PhysicsNeMo Discover finds models, datapipes, examples, and documentation for a SciML task (evaluation).
• PhysicsNeMo ShardTensor helps add domain parallelism, integrate DDP or FSDP2, implement shard-aware operations, and write multi-GPU correctness tests (evaluation).

Installation Options

Refer to pyproject.toml for currently supported Python versions, optional dependency groups, and exact dependency constraints. The command at the top of this README selects the CUDA 13 backend. Use the CUDA 12 backend instead with:

pip install "nvidia-physicsnemo[cu12]"

For a basic installation that uses PyPI's default PyTorch distribution and does not install the CUDA-specific RAPIDS packages:

pip install nvidia-physicsnemo

Optional features compose with either backend, for example:

pip install "nvidia-physicsnemo[cu13,gnns]"

To work from a source checkout with uv:

git clone https://github.com/NVIDIA/physicsnemo.git
cd physicsnemo
uv sync --extra cu13

Learning Resources

Learn through the PhysicsNeMo notebooks on Hugging Face, the AI for Science bootcamp, and the self-paced NVIDIA Deep Learning Institute course. Pretrained models and datasets are available through the NGC catalog.

Community and Contributing

Contributions to the library, examples, and documentation are welcome.

• Ask questions and share work in GitHub Discussions.
• Report a bug or propose a feature through GitHub Issues.
• Look for issues labeled help wanted.
• Before opening a pull request, read the contribution guide and coordinate the proposed work with maintainers in an issue or discussion. Every pull request should correspond to an open issue. For substantial changes, wait for maintainer feedback before starting implementation.
• Follow the code of conduct, and report vulnerabilities privately through the security policy.

For release history and upgrade notes, refer to the changelog, GitHub releases, and the v2 migration guide.

Citation

If PhysicsNeMo supports your research, cite the project using the metadata in CITATION.cff. Work that uses PhysicsNeMo domain parallelism should also cite ShardTensor: Domain Parallelism for Scientific Machine Learning.

License

PhysicsNeMo is licensed under the Apache License 2.0.
