fix(builder): fold correctly on OpenStation's phone layer - #56

Merged
AllTerrainDeveloper merged 3 commits into
AllTerrainDeveloper:mainfrom
juanlentino:fix/builder-phone-layout
Sep 16, 2026
Merged

AllTerrainDeveloper merged 3 commits into
AllTerrainDeveloper:mainfrom
juanlentino:fix/builder-phone-layout

Conversation

@juanlentino

Copy link
Copy Markdown
Contributor

Summary

The builder was unusable on OpenStation's phone layer (data-os-mode="mobile", ≤ 767px). Every item below was reproduced at 375×812 on WordPress 7.1 + OpenStation 1.1.9 before the fix and re-measured after it, and the desktop three-pane layout at 1440px was checked to be unchanged.

Before (measured) Cause After
TE…/CH… fragments painted down the canvas's left edge; a 29px inspector box on the right Rail tracks fold to 0px but the rails keep padding: 14px; overflow: hidden clips at the padding edge Padding and border fold with the track. The rail rules now sit above the container queries, since equal specificity is decided by order
Every card 377px wide in a 313px list, right edge off-screen .atfb-canvas__list had an implicit auto column sized to the widest card's min-content; the card preview has no atf-form container ancestor, so form.css never stacked the Name field's two inputs grid-template-columns: minmax(0, 1fr); the preview is the atf-form container, so a card folds at the width the published form folds
Tabs 405px in a 357px bar, Confirmations clipped .atfb-tabs is nowrap Scrolls sideways below 640px (the shell's own phone tab-strip convention)
Toolbar 885px, everything after Export — including Save — unreachable .atfb-bar__right never wraps Wraps, secondary buttons icon-only (labels kept off-screen for assistive tech)
Tapping a palette chip adds nothing A field was only added via the drag manager's onClickOnly; on a phone the shell's dragManager.start() returns null and that callback never exists The chip's own click adds the field when the manager declined the press. Keyboard activation now works too
No palette at all below 640px Folded, with nothing to open it "Add a field" under the canvas opens the palette as a full-width sheet; a tap appends and closes it
240px inspector beside a 117px canvas; no way to put a selection down Only the canvas's empty space deselected Inspector takes the whole width with a Done control; fly-over and selection are exclusive

Also: the builder's own inputs are 16px under the mobile stamp, per docs/mobile.md (the card preview is exempt so it still shows the theme's size).

Theme Studio and Analytics already folded correctly and are untouched. Entries stacks list-over-detail on a phone; usable, left for a follow-up.

Tests

tests/vitest/builder-phone.test.ts: the chip tap under a declining drag manager (and no double-add when the manager takes the press), plus the stylesheet's cascade order and the two container facts. Both behavioural assertions were watched failing against the old code. Full suite: 469 passed. tsc --noEmit clean.

Fixes #55.

🤖 Generated with Claude Code

On a phone the shell forces the builder full-screen at ~360px and the
window still laid itself out for a desktop: the folded rails left a 28px
sliver painted over the canvas (a 0px track does not zero the item's own
padding), the canvas list's implicit auto track sized itself to a card's
min-content so every card ran off the right edge, the tab strip clipped
its last tab, and the toolbar ran to 885px with Save cut off. A tap on a
palette chip added nothing, because the field was only ever added through
the drag manager's click-only callback and the shell refuses every drag
on a phone by returning null from start().

- Fold a rail's padding and border with its track; the rail rules now sit
  above the container queries, since they win only by coming later.
- Give the canvas list an explicit minmax(0, 1fr) column, and make the
  card preview the `atf-form` container form.css asks about, so composite
  fields and half-width rows fold in a card at the width they fold on the
  published form.
- Scroll the tab strip sideways and wrap the toolbar icon-only (labels
  stay for assistive tech) below 640px.
- Let a chip's own click add the field when the manager declined the
  press — which also makes keyboard activation work.
- Below 640px the inspector takes the whole width and carries Done; the
  palette opens as a full-width sheet from an "Add a field" button under
  the canvas, closes on a tap, and is exclusive with a selection.
- Raise the builder's own inputs to 16px under the mobile stamp, per the
  shell's mobile contract (the card preview keeps the theme's size).

Tests pin the chip tap under a declining manager and the stylesheet's
cascade order; both were watched failing against the old code.

Fixes #1. Upstream: AllTerrainDeveloper#55.

Co-Authored-By: Claude Opus 5 <noreply@anthropic.com>
@juanlentino

Copy link
Copy Markdown
Contributor Author

Before / after on the phone layer

Shot with Playwright (Chrome, 390×844 @2x, iPhone UA) against WordPress 7.1 + OpenStation 1.1.9, same Contact form, same Playground instance — only the plugin files were swapped between the two rows.

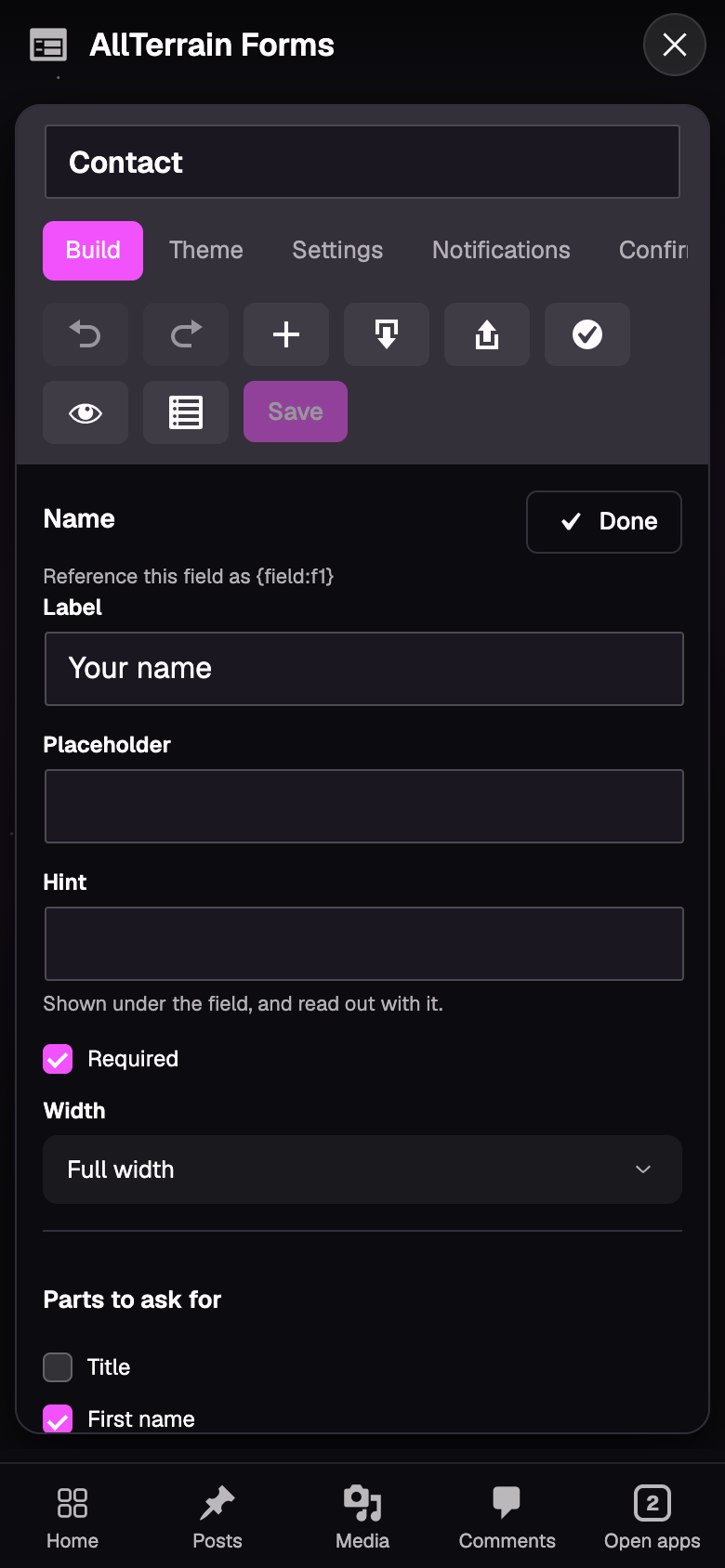

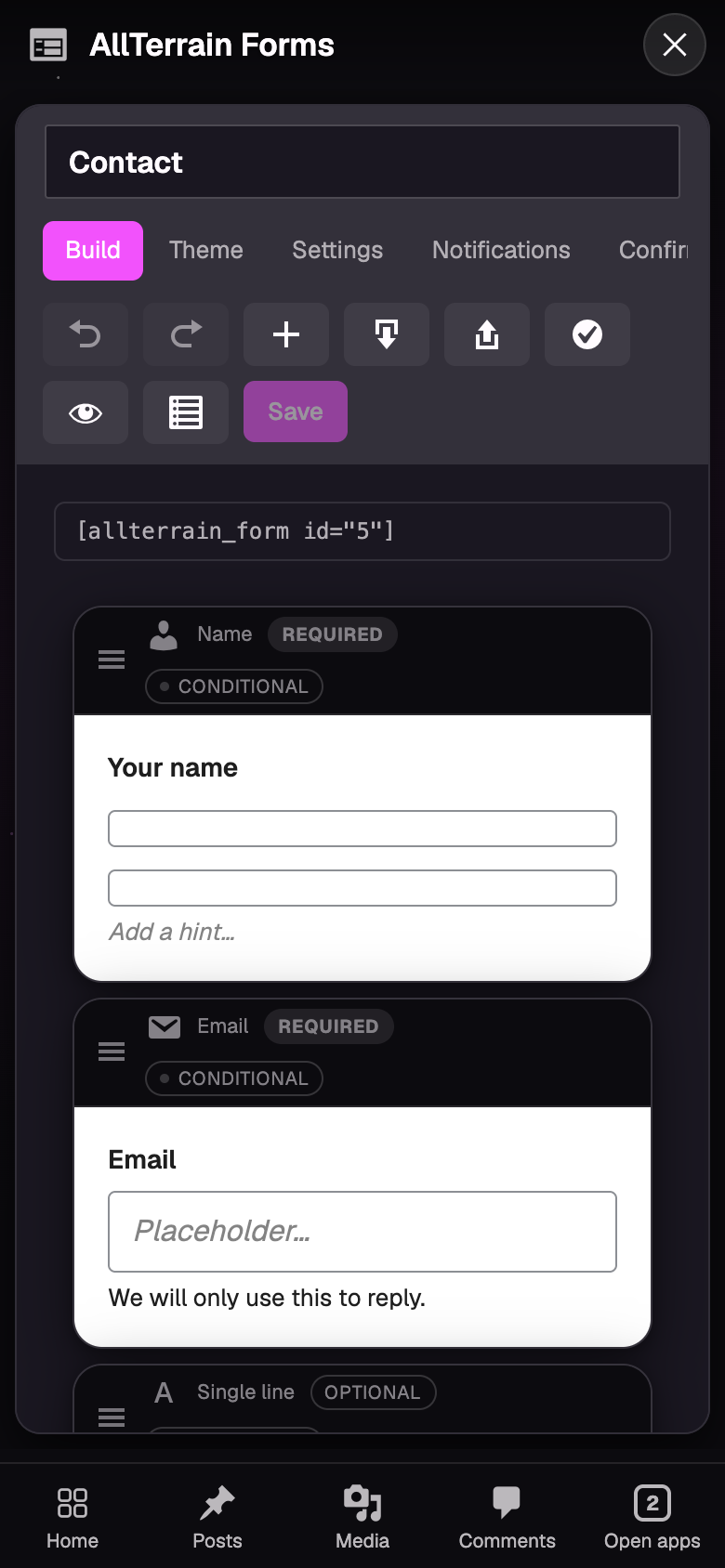

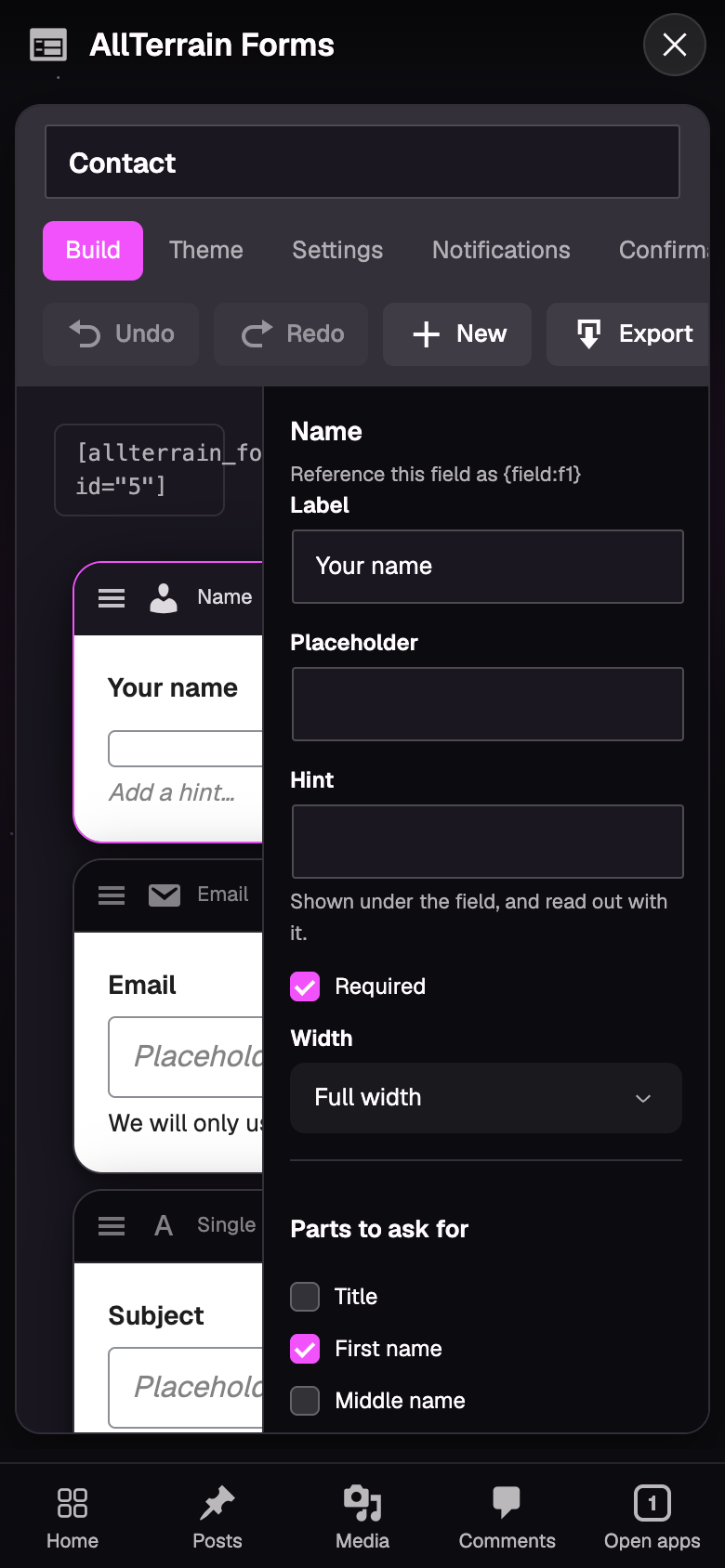

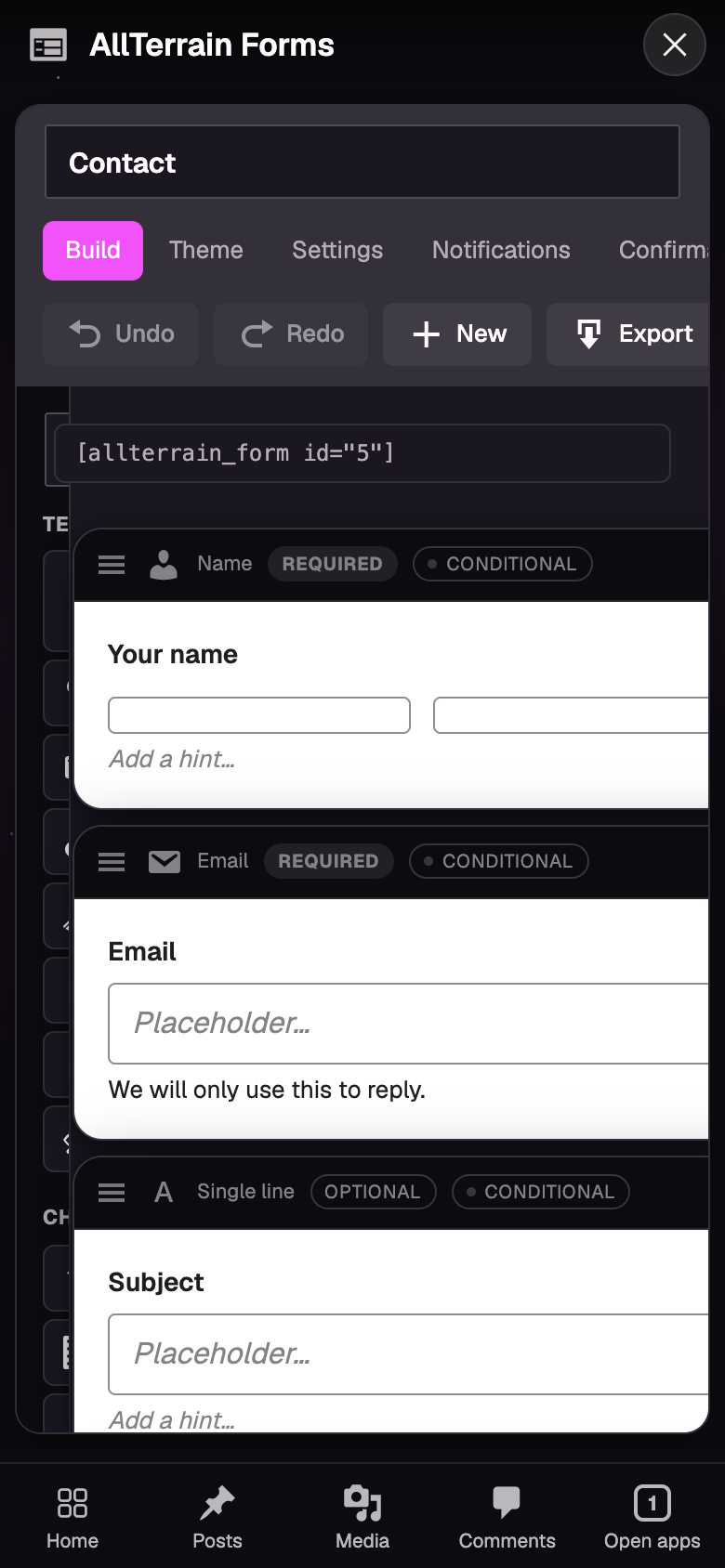

Canvas Field selected
Before (main, 1.1.0)
After (this PR)

What to look for, top row → bottom row: the TE/CH palette sliver down the left edge is gone; the cards sit inside the canvas and the Name field's two inputs stack; the tab strip scrolls instead of clipping; the toolbar wraps icon-only so Save is on screen; the inspector takes the whole width with a Done control instead of a 240px column beside a 117px strip of canvas.

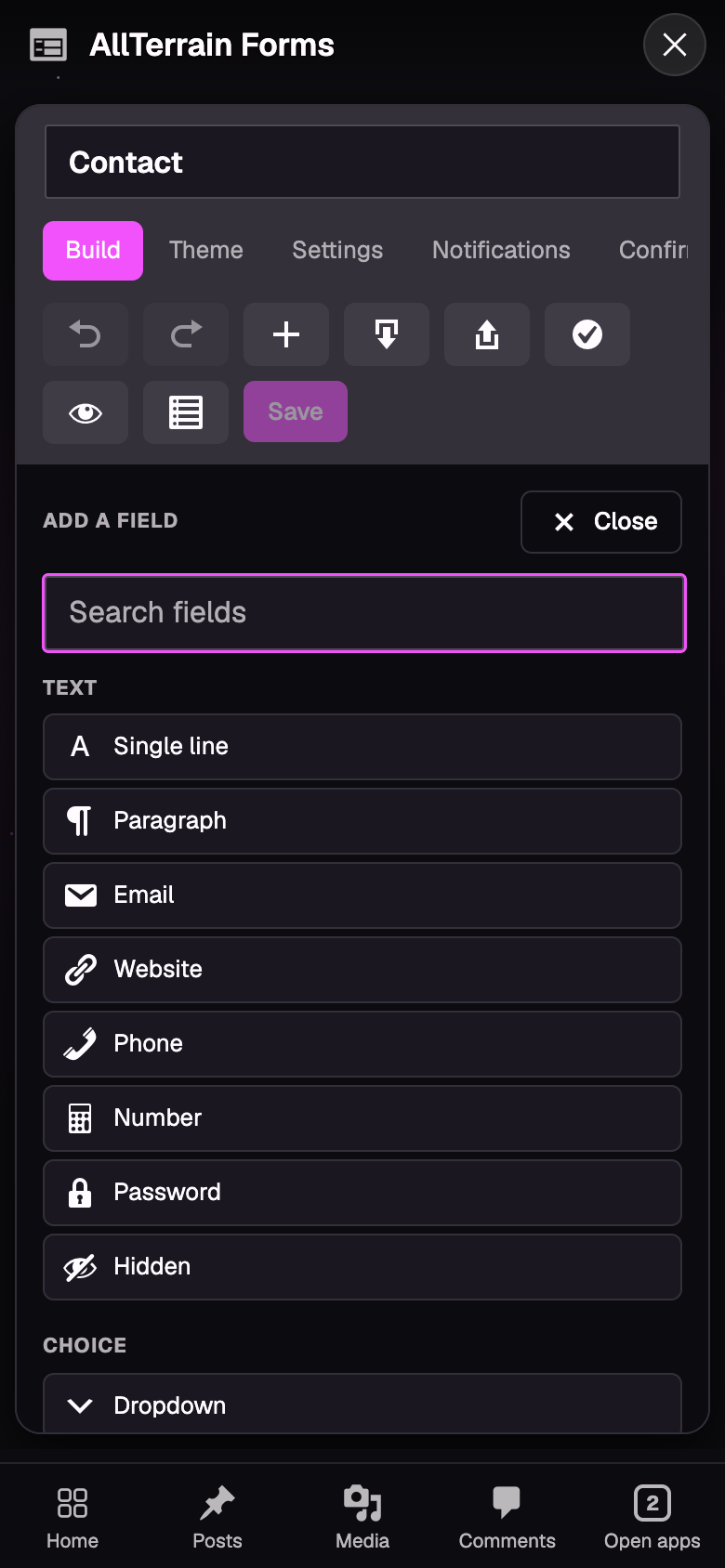

And the one state that did not exist before — adding a field on a phone, where the shell refuses every drag:

"Add a field" under the canvas opens the palette as a full-width sheet; a tap on a chip appends the field and closes it.

@AllTerrainDeveloper

Copy link
Copy Markdown
Owner

Oh gosh! I never tested it in mobile 😄 That's great! I'll update the plugin with this awesome change ASAP!

Publish the mobile builder changelog, add juanml to WordPress.org contributors, and align release versions. Isolate deferred work in the phone tests and regenerate the development bundle.
Cover adding, saving and reopening fields at phone width and returning to desktop. Use consistent CommonJS wrappers so module-loading races cannot change the committed builder bundles in CI.
@AllTerrainDeveloper
AllTerrainDeveloper merged commit ac01c63 into AllTerrainDeveloper:main Sep 16, 2026
3 checks passed
